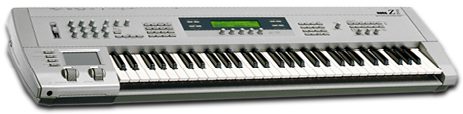

Korg Z1
Korg Z1 Specifications:
Synthesizer Section
| Sound Generation : | Multi-Oscillator Synthesis System |
| Sound Source : | 2 oscillators(max.), Sub Oscillator, Noise Generator |
| Voices : | 12 voices (expandable to 18 voices with optional upgrade board DSPB-Z1) |
| Keyboard : | 61-key, velocity and aftertouch sensitive |
| Memory Capacity Programs : | 256 |
| Memory Capacity MultiSets : | 32 |
| Arpeggiator : | 5 preset patterns, 15 user patterns |
| Effects : | Digital multi effector, 15 x Insert effect and 3 x Master effect |
Others
| Display : | 240 x 64 LCD |
| Card slot : | PCMCIA format (ATA or linear, 256K-4 Mbytes supported) up to 4096 Programs, 512 Multis, 240 User Arpeggio Patterns and 16 sets of Global settings |
| Controllers : | Pitch Bender, Modulation Wheel, X-Y Pad, Modulation SW 1 &2, X-Y Hold SW, Portamento SW, Knobs 1-5, Filter Knobs (Cutoff, Resonance, EG Intensity), Filter EG Knobs (ADSR), Amp EG Knobs (ADSR), Arpeggiator Control Knobs (Gate, Velocity, Resolution, Speed) |
| Connectors : | L/Mono, R, Phones, MIDI IN / OUT / THRU, Damper pedal, assignable switch, Volume pedal, assignable pedal |
| Dimensions : | 42.9"(W) x 13.7"(D) x 4.7"(H) mm |
| Weight : | 30.6 lbs |
| |
