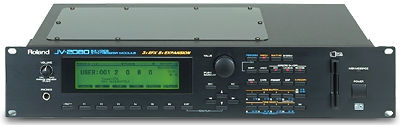

Roland JV-2080
 |
|
Manufacturer: Roland
Model: JV-2080
Website: Roland US
|
|
|
The JV-2080 64-Voice Synthesizer Module expands upon the worldwide
success of Roland's JV-1080 by offering eight expansion board slots,
three independent EFX sets and dramatically enhanced ease-of-use. These
features, combined with a large new backlit LCD and innovative Patch
Finder and Phrase Preview functions, make the new JV-2080 a powerful tool
for the professional synth market.
Features:
- Accommodates up to 8 user-installable sound expansion boards,
allowing access to approximately 2,900 patches when fully expanded
- 768 internal patches; 16MB of wave data expandable to 144MB
(16-bit linear format)
- Large 320 x 80 dot graphic backlit LCD for dramatically enhanced
ease-of-use
- Innovative Patch Finder function groups similar patches from
internal banks, expansion boards and memory data cards into one of 38
categories, making patch location quick and easy
- Phrase Preview function allows users to hear patches within the
context of a musical phrase by pressing volume knob; no keyboard needed
- 3 onboard EFX sets with 40 effects each
- 64-voice polyphony and 16-part multitimbral capability
- Allows tempo sync of expansion board phrases
JV-2080 Specifications:
Synthesizer Section
| Maximum Polyphony : | 64 voices |
| Number of Multitimbral Parts : | 16 |
| Memory Capacity Perform. : | Internal 80, User 32, Data Card 16 |
| Memory Capacity Patches : | Internal 768, User 128, Data Card 64 |
| Memory Capacity Rhythm Sets : | Internal 12, User 2, Data Card 1 |
| System Common Effects : | Chorus, Reverb (8 types) |
| EFX : | 40 |
Others
| Display : | 320 x 80 full dots backlit LCD |
| Connectors : | Mix Output (L(Mono)/R), Output 1 (L/R), Output 2 (L/R), Phones, MIDI IN/OUT/THRU, Data Card slot, Expansion slot (8) |
| Dimensions : | 482(W) x 281(D) x 88(H) mm |
| (19" x 11" x 3-1/2") |
| Weight : | 4.9kg (10 lbs 13 oz) |
| |
